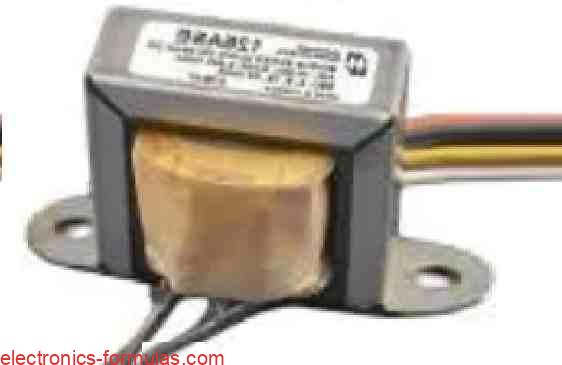

Transformers are really cool devices, that do more than just change the voltage of signals. One of their awesome features is called isolation.
This means that there is no direct electrical link between the primary and secondary coils, which keeps the input and output circuits completely separate. This isolation is super useful in audio transformers which help connect amplifiers to speakers.
When we look deeper, into how transformers work we see that they can change a sinusoidal input signal, like an audio signal or voltage, into a different output signal or voltage.
They do this while keeping the input and output sides physically disconnected. This amazing process happens, with the help of two or more coils of insulated copper wire called windings that are carefully wrapped around a soft magnetic iron core.
Because of the soft iron cores inductive coupling, once an AC signal is delivered to the primary input winding, an equivalent AC signal arises on the output secondary winding.
The applied signal as it travels through the transformer is either increased or decreased depending on the turns ratio between the input and output wire coils.
These audio output transformers can be classified into two categories: step-up or step-down, although their primary purpose is impedance matching instead of being wound to provide a particular voltage output.
Additionally a transformer equipped with a 1:1 turns ratio isolates the main circuit from the secondary side without altering the voltage or current flows. In general this form of transformer is referred to as an isolation transformer.
Transformers are capable of being implemented as bidirectional devices which means that the normal primary input winding could be executed as an output winding and the regular secondary output winding could be employed to be an input.
Although they are not machines with intelligence, they are capable of helping match signal or voltage specifications across devices by providing a signal gain whenever used in a single direction or a loss of signal while implemented in the opposite direction.
Additionally, keep in mind that an individual transformer may contain several main or secondary windings, and there may be several electrical wires or “taps” along the entire span of these windings.
Multi-tap audio transformers have the benefit of providing a range of electrical impedances and gain or loss ratios, which makes them beneficial for matching the impedance of speaker loads and amplifiers.
Audio transformers, just like their name indicates, are made to function in the audio range of frequencies. As a result, they may be used in inter-stage coupling, impedance matching of amplifiers, input stages (which include microphones), and output stages (things like as loudspeakers).
Consideration must always be given to the frequency response, the primary and secondary impedances, and the power capacities.
Although they function over a far larger frequency range, audio and impedance matching transformers have a similar construction with low frequency voltage and power transformers.
For instance, a vocal range of 20 Hz to 20 kHz. In addition to changing voltage and current values at high frequencies, audio transformers can carry DC in one or more of their windings for implementation in digital audio applications.
How to do Impedance Matching in Audio Output Transformers
Impedance matching is one of the fundamental uses for audio frequency transformers. To maximize power transmission, audio transformers are perfect for balancing loads with varying input/output impedances with amplifiers.
For instance the impedance of a transistor amplifier’s output stage may range from many hundred ohms, while the impedance of a common loudspeaker can vary between 4 to 16 ohms.
A popular illustration of this is the LT700 Audio Transformer that may be used to drive a loudspeaker in an amplifier’s output stage.
The “turns ratio” for a transformer is defined as the ratio of a specific amount of coil turns on the primary winding (NP) to the total quantity of coil turns on the secondary winding (NS).
Because each single coil turn of both windings induces the identical level of voltage, the primary to secondary voltage ratio (VP/VS) becomes equal to the turns ratio.
Impedance matching audio transformers frequently employ the square of the turns ratio in calculating the impedance ratio value between two windings.
This means that their impedance ratio is proportional to the squared turns ratio and the squared primary to secondary voltage ratio, as indicated.
Impedance Ratio
Zp / Zs = (Np / Ns)2 = (Vp / Vs)2
In this case the transformer’s turns ratio represents (NP/NS), its voltage ratio equals (VP/VS), its primary winding impedance constitutes ZP, its secondary winding impedance becomes ZS.
An impedance matching audio transformer for example, with a turns ratio (or voltage ratio) of say, 2:1 will end up with an impedance ratio of 4:1.
Solving an Audio Transformer Problem #1
An audio transformer with a 16:1 impedance ratio is designed to accurately match the output of a power amplifier to a loudspeaker. To guarantee optimal power transmission, let us calculate the nominal impedance of the loudspeaker based on the amplifier’s output impedance (130Ω).
Zp / Zs = (Np / Ns)2 = 16:1
130Ω / Zs = 16 / 1 = ( 4 / 1)2
∴ Zs = (130 × 1) / (42) = 8.125Ω
So we can that the power amplifier is compatible to efficiently drive an 8-ohm speaker.
Understanding 100V Audio Line Transformer
Impedance matching is very frequent in 100-volt line transformers, that are used to effectively transmit both music and speech audio over public address systems, often known as tannoy systems.
Such systems which are often mounted in ceilings, use many loudspeakers strategically placed at varied distances from the power amplifier.
By using line isolating transformers, it is possible to hook up an arbitrary number of low-impedance loudspeakers in a way that guarantees they appropriately load the amplifier.
This setup allows for good impedance matching among the amplifier which serves as the source, and the speakers which operate as the load, resulting in optimal power transmission.
The power loss of audio transmissions over speaker cables corresponds to the square of the current (P = I²R), considering the particular cable resistance.
As a result the output voltage of an amplifier built for public address or tannoy systems has been standardized to a constant level of 100 volts peak which is equivalent to around 70.7 volts root mean square.
For example, suppose a 200-watt amplifier is connected to an 8-ohm speaker; in this situation, the amplifier would output a current of 5 amps. In contrast when connected to a 100-volt line at full power, an equivalent 200-watt amplifier would require just 2 amps of current, allowing the use of narrower gauge wires.
It is crucial to keep in mind however, that the 100 volts can only be found on the line when the power amplifier is operating at maximum rated power, anything different from this condition results in reduced power output (and hence decreased sound loudness) as well as a decrease in line voltage.
In terms of a speaker system running at 100 volts that is equivalent to an effective root mean square (rms) voltage of 70.7 volts, the line transformer is critical in raising the audio output signal voltage to 100 volts.
This increase in voltage is crucial because it allows for less current flowing through the transmission line for a given power output reducing signal losses. As a result smaller diameter or gauge cables may be used which are less expensive and simpler to handle.
Because the impedance of a conventional loudspeaker is often low, it becomes necessary to use an impedance matching step-down transformer, also known as a line to voice-coil transformer.

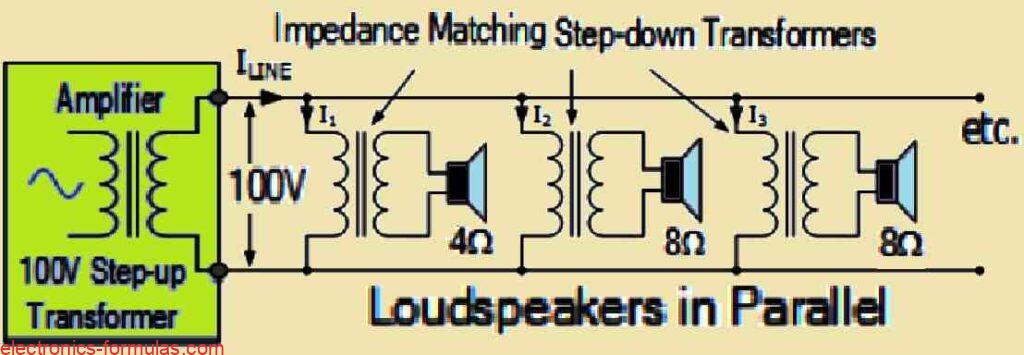

This transformer is used for each loudspeaker that is connected to the 100V line, as shown in the diagram below.
Line Transformers with 100V Transmission
In this setup the amplifier uses a step-up transformer to provide a steady transmission line voltage of 100 volts while keeping the current low. This helps to maintain a certain power output.
The loudspeakers are connected in parallel and each speaker has its own step-down transformer to match the impedance. This setup reduces the secondary voltage but increases the current making it easier to connect the 100V line with the lower impedances of the speakers.
One of the great things about this type of audio transmission line is its flexibility.
It allows you to connect many different speakers, tannoys, or other sound devices to one line even if they have different impedances and power ratings.
For example you might see setups like 4 ohms at 5 watts or 8 ohms at 20 watts showing how adaptable this system can be.

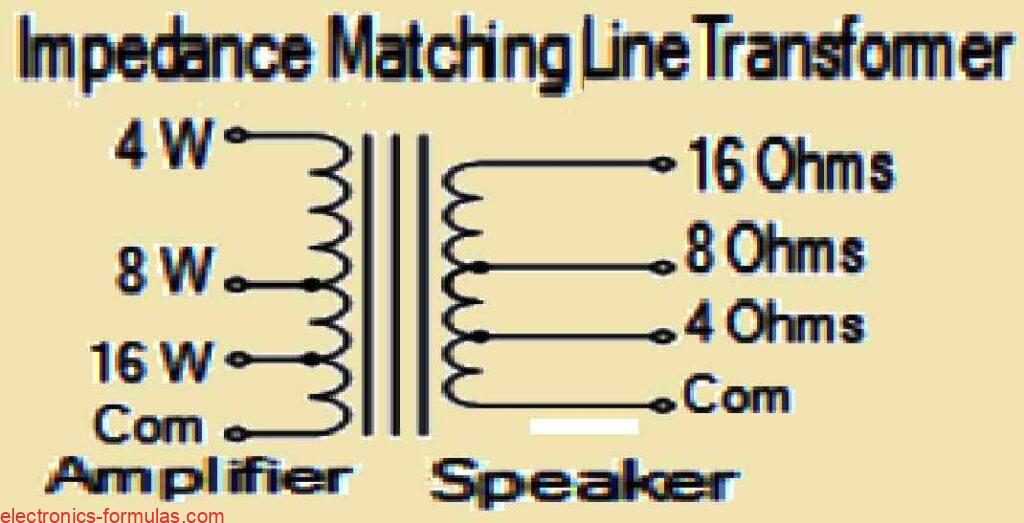

Transmission line matching transformers usually have different connection points called tapping points on the primary winding. These tapping points help choose the right power levels which affects how loud each loudspeaker sounds.
The secondary winding also has its own tapping points that offer different impedances making sure the loudspeakers can work well together.
For example think about a simple 100V line-to-speaker transformer. This transformer can handle speaker loads of 4, 8, or 16 Ohms on the secondary side and on the primary side it can work with amplifier power ratings of 4, 8, and 16 watts, depending on which tapping points are selected.
In real life the PA system line transformers can be set up to handle a wide variety of combinations for both series and parallel speaker loads along with power handling that can go up to several kilo-watts.
Audio transformers play an important role in sound engineering especially when it comes to linking devices that work with low impedance or produce weak signals, like microphones, turntable pick-ups, and different line inputs, to amplifiers or pre-amplifiers.
Besides helping with matching voltage impedance, these transformers are crucial for making sure the signal is transferred well and sounds great.
To handle a wide range of frequencies, the input audio transformers are carefully designed. Their construction usually involves a smart balance between the internal capacitance of the windings and their inductance.
This clever design not only improves the frequency range, but also allows for a smaller transformer core, making it more space-efficient without losing performance.
In this tutorial, about audio transformers, we have looked at their vital role in matching impedances between various audio devices.
This includes situations like connecting an amplifier to a speaker or matching a microphone with an amplifier which helps everything work together smoothly and improves sound quality.
Power transformers work best at lower frequencies, usually around 50 or 60Hz. On the other hand the audio transformers are made to work within the audio frequency range which goes from about 20Hz to 20kHz, and sometimes even higher for those used in radio.
To cover this wide range of frequencies, audio transformers need special core materials. These are often made from high-quality steel like silicon steel, or special iron alloys that have very low hysteresis losses.
One downside of audio transformers is that they can be quite large and expensive. However using advanced core materials can help make them smaller. This is because, generally the size of a transformers core gets bigger when the frequency of the supply is lower.
